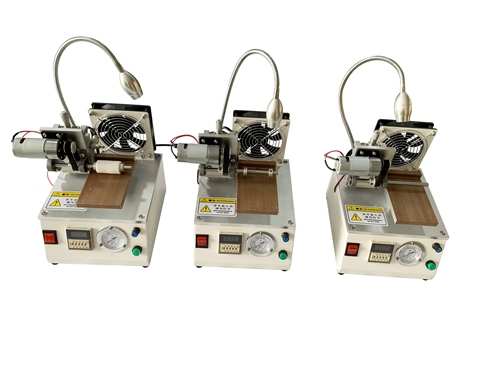

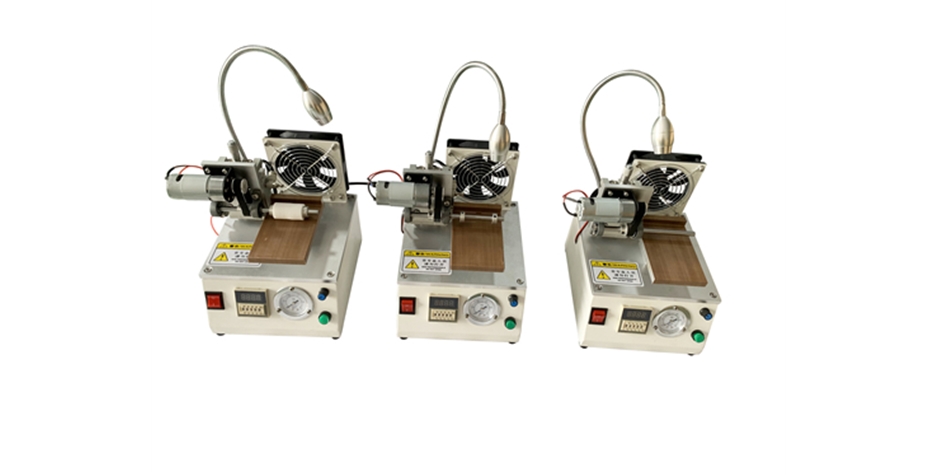

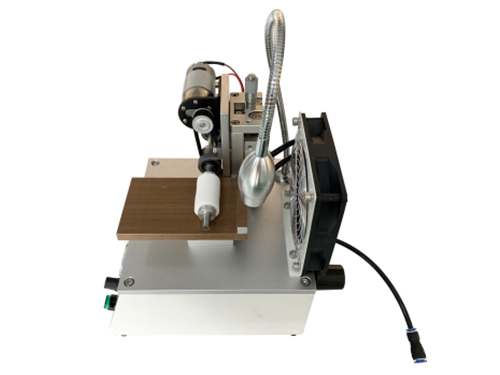

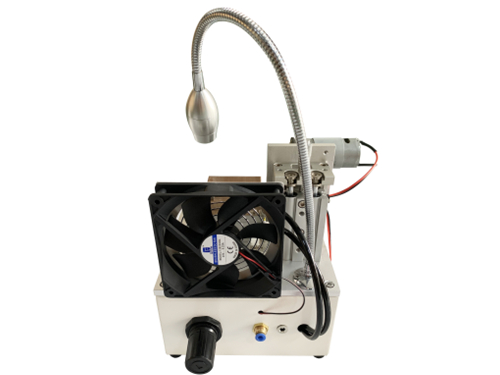

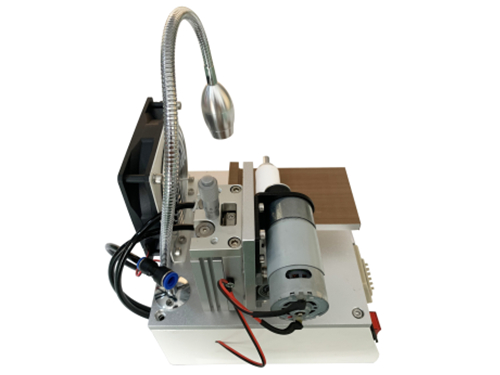

TAB COF Cleaning Machine Specification

Device Description

TAB COF cleaning machine CLY-230

Equipment Usage

Cleaning FPC、COF

Applicable TAB COF specifications

15-70MM

Number of clean TAB COFs

1 piece/time

Cleaning direction

Direction

cleaning time

0-60S

Tact Time

TAB，COF 50 pcs/H

Supply air pressure

0.2Mpa

power supply

AC110V-220V

Pneumatic device

SMC cylinder and Yadeke Barometer combination

Industrial control unit

Time relay controlled PWM stepless speed regulation

Position detection

not have

Control method

Button+time operation

Parameter settings

Free cleaning time and pressure adjustment as needed

motor speed

0-1450 rpm

Maximum torque of the motor

3.4kg.cm

peak power

30W

Size

250*250*250mm(L*W*H)

Weight

6.5KG

Packaging size

330*270*330mm(L*W*H)

Packaging weight

8.5kg
